| Multichannel Surround |
|
| DTS HD Master / DTS:X |
Yes / No |
| DTS Neo:6 / DTS Neural:X |
Yes / No |
| Dolby TrueHD / Dolby Atmos |
Yes / No |
| Dolby ProLogic Il / Dolby Surround |
Yes / No |
| Multichannel Stereo |
Yes |
| Dialog Enhancer |
Yes |
| Max. number of processing (preamp) channels |
5.1 |
| |
|
| Sound Enhancements |
|
| Discrete Power Amplifier |
5 |
| Pure Direct |
yes |
| Audyssey |
MultEQ |
| Audyssey Dynamic EQ / Dynamic Volume |
Yes / Yes |
| Compressed Audio Restorer |
Yes |
| |
|
| Network |
|
| HEOS Multiroom and Streaming |
Yes |
| Lossy Formats: MP3 / WMA / AAC |
Yes / Yes / Yes |
| Lossless Formats: FLAC / ALAC / WAV |
Yes / Yes / Yes |
| Lossless Formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/24 |
Yes / Yes / Yes |
| DSD Audio Streaming |
up to DSD5.6 |
| FLAC HD 192/24 |
Yes |
| WAV 192/24 |
Yes |
| ALAC 192/24 |
Yes |
| Gapless playback |
Yes (FLAC, WAV, ALAC ,DSD) |
| AirPlay Audio Streaming |
Yes (AirPlay2) |
| Roon Tested |
Yes |
| Internet Radio |
Yes (TuneIn) |
| Spotify Connect* / Tidal* / Deezer* / others * |
Yes / Yes / Yes / Yes |
| Amazon Prime Music* |
Yes |
| Compatible with Remote APP for Smart Phones |
Android / iOS |
| Compatible with Remote APP for Tablets |
Android / iOS/Amazon Kindle |
| Ethernet Ports |
Yes |
| Wi-Fi |
Yes |
| Bluetooth |
Yes |
| Bluetooth Headphone transmission |
Yes |
| Bluetooth Headphone Volume Control |
Yes |
| |
|
| HDMI |
|
| HDMI Inputs: Back/Front |
6 (3x 8K) / 0 |
| HDMI Outputs: Main/Zone |
1 / No |
| HDMI max Resolution (8k / 4k) |
8k/60 - 4k/120 |
| HDMI to HDMI Scaling |
up to 8K 60/50 |
| HDMI: 8K / 4K / CEC / eARC |
Yes / Yes / Yes / Yes |
| HDMI: Dolby Vision / HDR 10+ / Dynamic HDR / HLG |
Yes / Yes / Yes / Yes |
| HDMI: ALLM / QMS / QFT / VRR |
Yes / No / Yes / Yes |
| HDMI pass-though in standby mode |
Yes |
| |
|
| Multiroom / CI |
|
| HEOS Multiroom integrated |
Yes |
| TV Sound grouping |
Yes |
| Main room multichannel audio - Zone stereo downmix |
Yes |
| Webbrowser Setup |
Yes |
| IP Control / RS232 Control / Web Control / App Control |
Yes / No / Yes / Yes |
| |
|
| Others |
|
| Voice Control - Works with Amazon Alexa |
Yes |
| Voice Control - Google Assistant / Apple Siri |
Yes |
| Auto speaker setup by microphone |
Audyssey MultEQ |

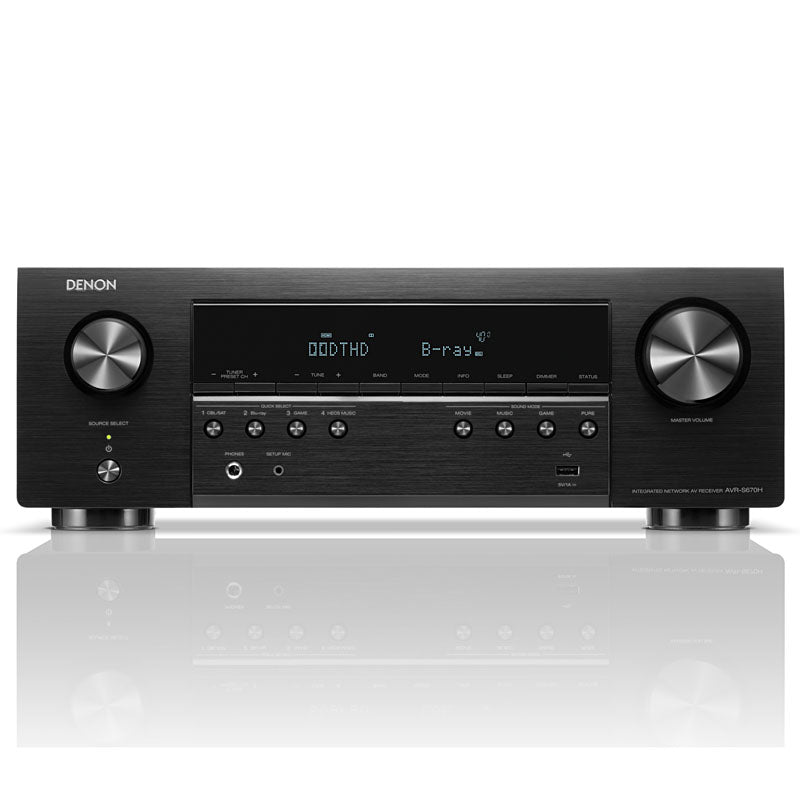

| Front Display |
1 line FLD |
| Graphic User Interface - GUI |
High Definition 1080p |
| GUI languages |
3 |
| Setup Assistant |
Yes |
| Quick Select Plus / Quick Select |
Yes / No |
| Firmware Update by Network / USB |
Yes / Yes |
| Variable Crossover |
Yes |
| Optimized Bass Redirection |
Yes |
| HDMI Diagnostic Mode |
Yes |
| ECO Mode |
Yes |
| Auto Power off |
Yes |
| Sleep Timer |
Yes |
| |
|

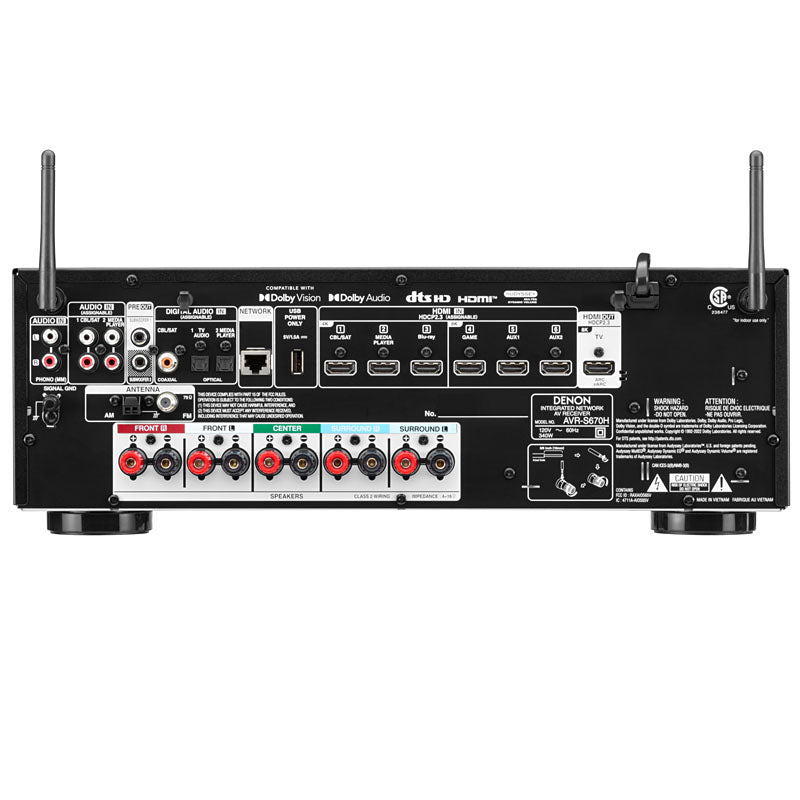

| Inputs/Outputs |
|
| HDMI In/Out |
6 / 1 |
| Analog In/Out |
2 / No |
| Phono (MM) In |
Yes |
| Digital in: Optical/Coaxial |
2 / 1 |
| Multichannel Pre-Out |
Yes (0.2) |
| Subwoofer Out |
2 |
| Speaker Terminal: Gold-Plated Screw / Regular Screw |
No / Yes |
| Number of Speaker Terminals |
5 |
| USB Audio Input Front |
Yes |
| USB Power 5V/1.5A Rear |
Yes |
| |
|
| Specifications |
|
| Number of Power Amps |
5 |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) |
75 W |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) |
100 W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) |
150W |
| |
|
| General |
|
| Available colors: Black / Premium Silver |
Yes / No |

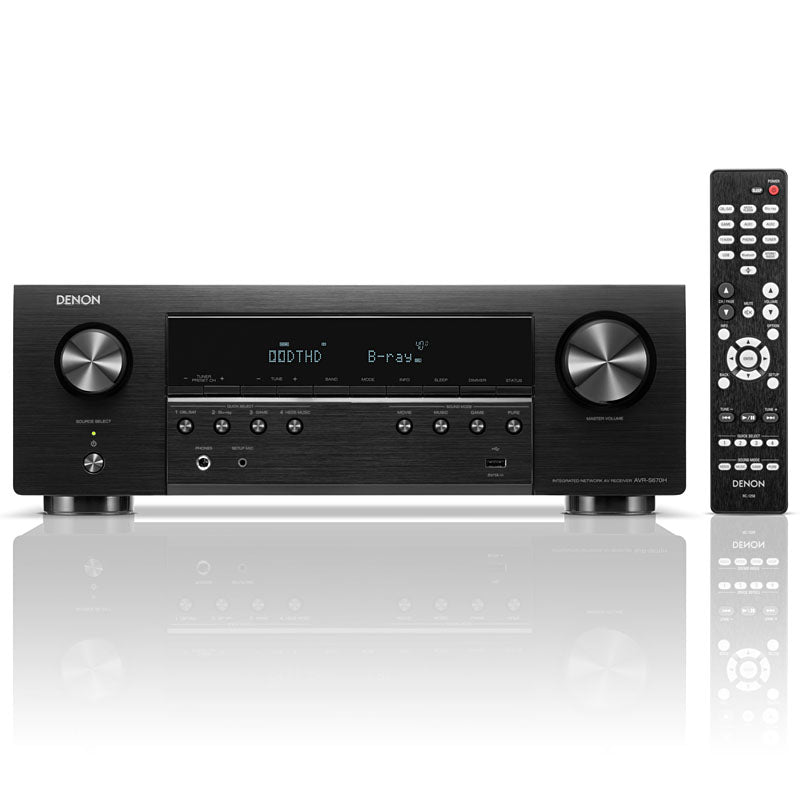

| System Remote Control |
RC-1258 |
| Power Consumption in W |
340 |
| Power Consumption No-Sound (ECO on / off) in W |
29 W / 39 W |
| Standby Consumption in W |
0.1 |
| CEC Standby Consumption in W |
0.5 |
| Network Standby Consumption in W |
Less than 2.0 |
Maximum Dimensions
Antenna:Horizontal: (W x D x H) in mm
( Antenna:Vertical: (W x D x H) in mm ) |
434× 339 × 151
( 434 x 339 x 215 )
|
| Carton Maximum Dimensions (W x D x H) in mm |
523 x 435 x 232 |
| Weight in kg |
7.8 |
| Carton Weight (inc. product) in kg |
9.7 |
