| Multichannel Surround |
|
| DTS HD Master, DTS:X, DTS:X Pro |
Yes, Yes, No |
| DTS Neo:X, DTS Neural:X |
No, Yes |
| DTS Virtual:X |
Yes |
| Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music |
Yes, Yes, Yes, Yes |
| Dolby ProLogic Ilz, Dolby Surround |
No, Yes |
| Multichannel Stereo |
Yes |
| Max. Number of Processing (Pre-Amp) Channels |
7.1 |
| |
|
| Sound Enhancements |
|
| Discrete Power Amplifier |
Yes |
| Pure Direct |
Yes |
| Audyssey |
MultEQ |
| Audyssey Dynamic EQ, Dynamic Volume |
Yes, Yes |
| Compressed Audio Restorer |
Yes |
| Discrete Power Amplifier |
Yes |
| |
|
| Network |
|
| Media Server |
Yes |
| HEOS Wireless Multi-Room Technology |
Yes |
| Alexa / Google Voice Assistant / Apple HomePod |
Yes, Yes, Yes |
| Lossy Formats: MP3, WMA, AAC |
Yes, Yes, Yes |
| Lossless Formats: FLAC, ALAC, WAV |
Yes, Yes, Yes |
| Lossless Formats: FLAC HD, WAV, ALAC (all 192kHz/24 bit) |
Yes, Yes, Yes |
| DSD Audio Streaming |
Yes (2.8/5.6MHz) |
| AirPlay 2 |
Yes |
| TuneIn |
Yes |
| Spotify Connect |
Yes |
| Pandora |
Yes |
| SiriusXM |
Yes |
| Roon Tested |
Yes |
| HEOS App Control |
Yes |
| Compatible with Remote APP for Smart Phones |
Denon 2016 AVR Remote |
| Ethernet Ports |
Yes |
| Wi-Fi |
Yes |
| Bluetooth |
Yes |
| |
|
| HDMI |
|
| HDMI Inputs: Back, Front |
6, No |
| HDCP2.3 support |
Yes |
| HDMI Outputs: Main, Zone |
2 / No |
| HDMI 2.1: 8K/60Hz AB, 4K/120Hz AB |
Yes, Yes |
| HDR, HLG, Dolby Vision, HDR10+, Dynamic HDR |
Yes , Yes, Yes, Yes, Yes |
| ALLM (Auto Low Latency Mode) Pass-through for gaming |
Yes |
| Variable Refresh Rate, Quick Frame Transport, Quick Media Switching |
Yes, Yes, No |
| 3D Signal Pass-through |
Yes |
| 8K Signal Pass-Through, Scaling, GUI Overlay |
Yes, Yes, Yes |
| Audio Return Channel (ARC), Enhanced ARC |
Yes, Yes |
| Auto LipSync |
Yes |
| |
|
| Multi-room CI |
|
| Multi-Room Zones |
2 |
| Zone Audio Source: HDMI; Optical, Coax, Network, USB; Analog |
Yes (2ch), Yes (2ch), Yes, Yes |
| Zone Audio Output: Speaker, Pre-Out |
Yes, No |
| IP Control, RS232 Control, Web Control, App Control |
Yes, No, Yes, Yes |
| Remote In / Out |
No, No |
| HDMI Diagnostics |
Yes |
| |
|
| Others |
|
| Auto Speaker Setup by Microphone |
Audyssey MultEQ |
| Front Display |
1-Line FLD |
| GUI Languages |
3 |
| Setup Assistent |
Yes |
| Quick Select Plus, Quick Select |
Yes, No |
| Variable Crossover |
Yes |
| Optimized Bass Redirection |
Yes |
| ECO Mode |
Yes |
| Auto Power Off |
Yes |
| Sleep Timer |
Yes |
| |
|

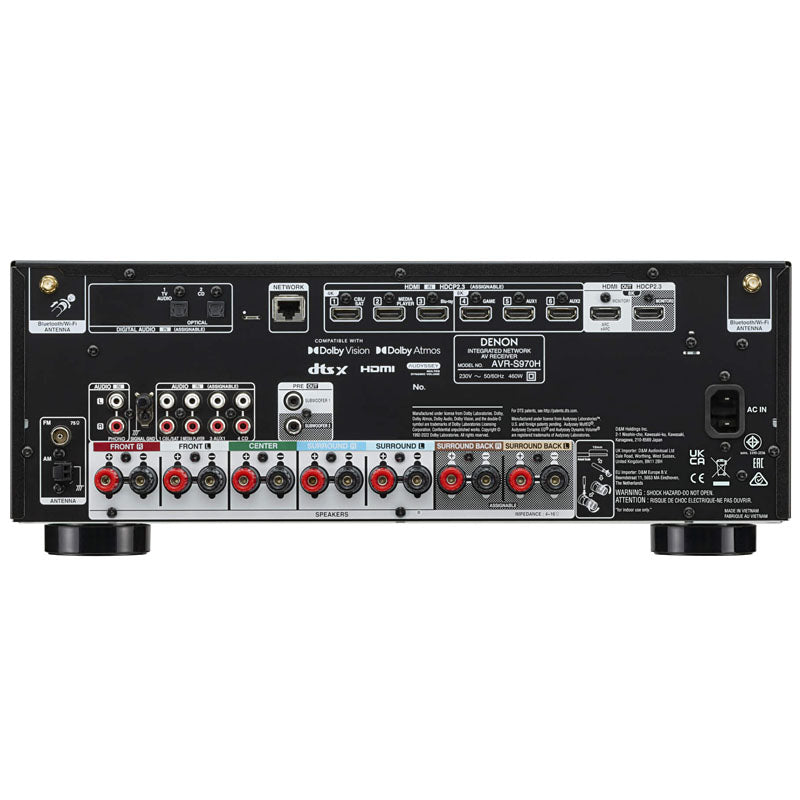

| Inputs Outputs |
|
| HDMI In, Out |
6, 2 |
| Multi-Room Video Out: Video, HDMI |
No, No |
| Analog In, Out |
4, No |
| Phono (MM) In |
Yes |
| Digital In: Optical, Coaxial |
2, 1 |
| Multi-Room Out: Analog, Digital |
No, No |
| Multichannel Pre-out |
Yes (0.2) |
| Subwoofer Out |
2 |
| Speaker Terminal: Gold-Plated Screw, Regular Screw |
No, Yes |
| Number of Speaker Terminals |
7 |
| Multi-Room Speaker Terminal |
Assignable |
| Front Inputs: Audio, Composite, Digital (Opt), HDMI, USB |
No, No, No, No, Yes |
| USB Audio, Made for iPod, Made for iPhone |
Yes, No, No |
| AM/FM Tuner |
Yes |
| |
|
| Specifications |
|
| Number of Power Amps |
7 |
| Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive) |
90W |
| Power Output (6 ohm, 1 kHz, 0.7% 2ch Drive) |
125W |
| Power Output (6 ohm, 1 kHz, 10% 1ch Drive) |
185W |
| |
|
| General |
|
| System Remote Control |
RC-1253 |
| Pre-Programmed, Learnable, LCD Display |
No, No, No |
| Power Consumption in W |
500 |
| Power Consumption No-Sound (ECO On / Off) in W |
35W/75W |
| Standby Consumption in W |
0.1 |
| CEC Standby Consumption in W |
0.5 |
| Network Standby Consumption in W |
Less than 2.0 |
Maximum Dimensions
Antenna: Horizontal: (W x D x H) in mm
Antenna: Vertical: (W x D x H) in mm
W/O Antenna: (W x D x H) in mm |
434 x 340 x 168
( 434 x 340 x 236 )
【 434 x 330 x 168 】 |
| Weight in KG |
9.5 |
| Weight in KG (Packaging) |
11.5 |
