This is a RETURNED PRODUCT. Returned products are in perfect condition, they may have been opened, and the rigours of an outbound and return journey through the postal system often result in some marking on the external packaging. All returned products carry a full manufacturers warranty and are offered with the same unconditional money back guarantee as our new products.
The Monitor Audio IV140 invisible speaker is designed to deliver ‘best in class’ audio performance in concealed in-wall and in-ceiling applications. The IV140 meets the demands of designers, installers and end users by providing ultimate discretion, easy to fit installation and high performance.

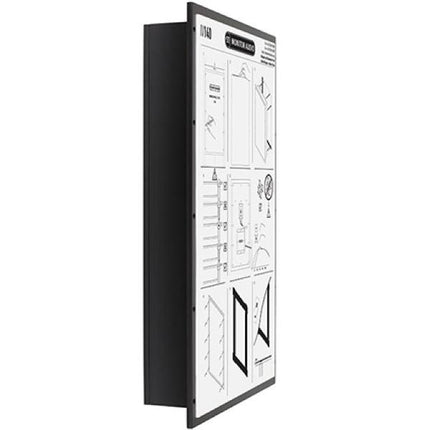

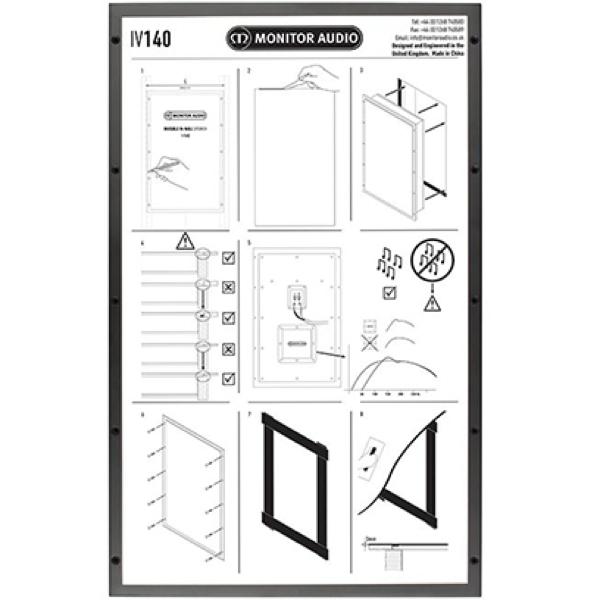

Concealed in-wall or in-ceilings, the speaker fits into all conventional 100mm stud bays, leaving enough room for cabling. Once installed and skimmed with plaster, the speaker is completely out of sight, with paint, light wallpaper or fabric hiding it from view.
A large low-frequency transducer and two high frequency transducers provide punchy, high power bass and sound vibration. This two-way transducer design also features an integrated crossover to generate a wider frequency range and deliver crystal clear sound quality with smoother overall balance and character.

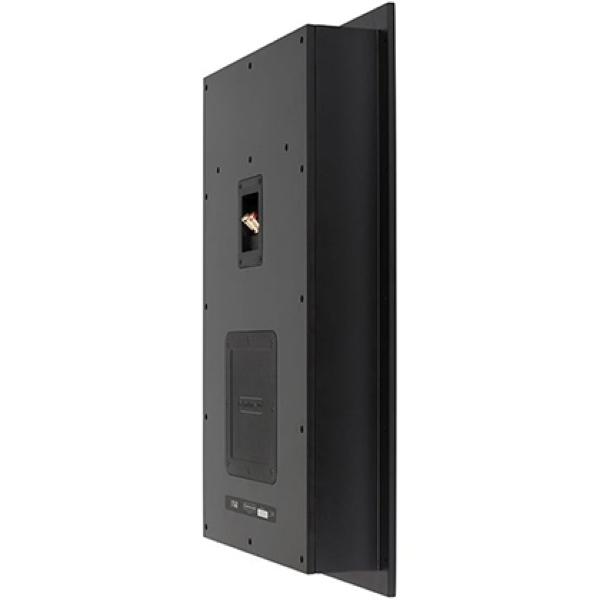

An integrated back box design isolates sound and ensures consistent, controlled performance. This rigid back box reduces sound emitted from the rear of the speaker, minimising leakage into other rooms.
The IV140 is protected against overload by automatic re-setting circuit breakers (PTC). These will attenuate output for a specific time period to allow the system to cool until normal operation can safely resume.
Frequency Response (-6dB): 75Hz – 18KHz (CP sealed)- 55Hz – 18KHz (Open back)
Sensitivity (1W@1m): 82dB (when installed as directed)
Impedance (nominal): 8 Ohms
Maximum S.P.L (@1M): 102.8dBA
Power Handling: 50 Watts (full range – IEC268-5 rating) - 100 Watts Music program (Using Minimum 80Hz High Pass filter)
Amplifier Requirements: 20-50 Watts (full range) - 20-100 Watts (Using Minimum 80Hz High Pass filter)
