This Bluetooth in-ceiling speaker package is a great budget solution for smaller rooms, and provides everything you need for a simple cost effective audio system for everyday music listening and even TV audio.
The compact digital amplifier which measures approximately 100 x 100 x 30mm can be easily installed in-ceiling and powered via a lighting circuit (with a 3A switched fused spur). Making it an easy retrofit solution for discreet Bluetooth audio at an unbeatable price.

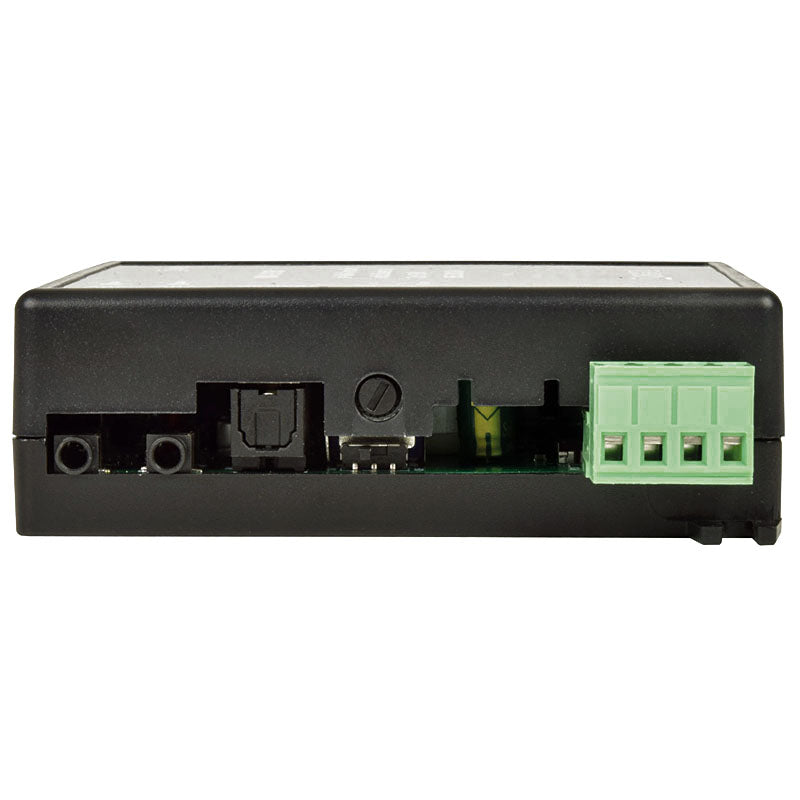

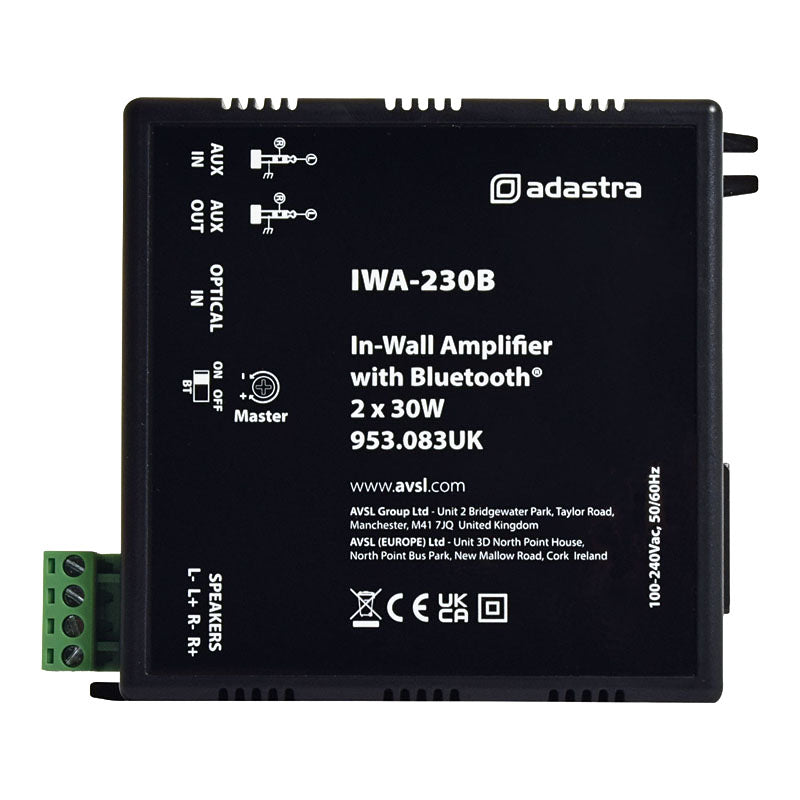

Adastra IWA230B 2x 30W Bluetooth In-Ceiling / In-Wall Amplifier
Stereo amplifier units for background music and public address in a minimalist housing for installation into cavity walls and ceilings. Class-D amplifier design operates cleanly and efficiently with minimal heat dissipation, combined with an internal digital switch-mode power section, which enables easy connection directly from the local mains supply. Bluetooth compatibility enables wireless streaming of audio files from a smart phone or other enabled device in addition to 3.5mm Aux input and an optical digital audio input, ideal for integrating into A-V systems. For discreet and trouble-free installation without any need for table-top or cabinet installation, these amplifiers can be combined with many different speaker types to provide the ideal sound system for any small to medium space or deployed in numbers to create a wide area sound installation.
Features
- Fig.8 mains power input
- Bluetooth on/off defeat switch
- Optical digital audio input
- 3.5mm stereo Aux input and output
- Onboard master volume control
- Bluetooth with unique serial ID
- Power lead & 2x 3m speaker cables supplied
Specifications
| Power supply |
100-240Vac, 50/60Hz (fig.8) |
| Bluetooth version |
4.0 |
| Minimum impedance |
4 Ohms per output |
| Line input |
3.5mm stereo aux & optical digital audio |
| Line output |
3.5mm stereo jack |
| Dimensions |
122 x 89 x 33mm |
| Weight |
150g |

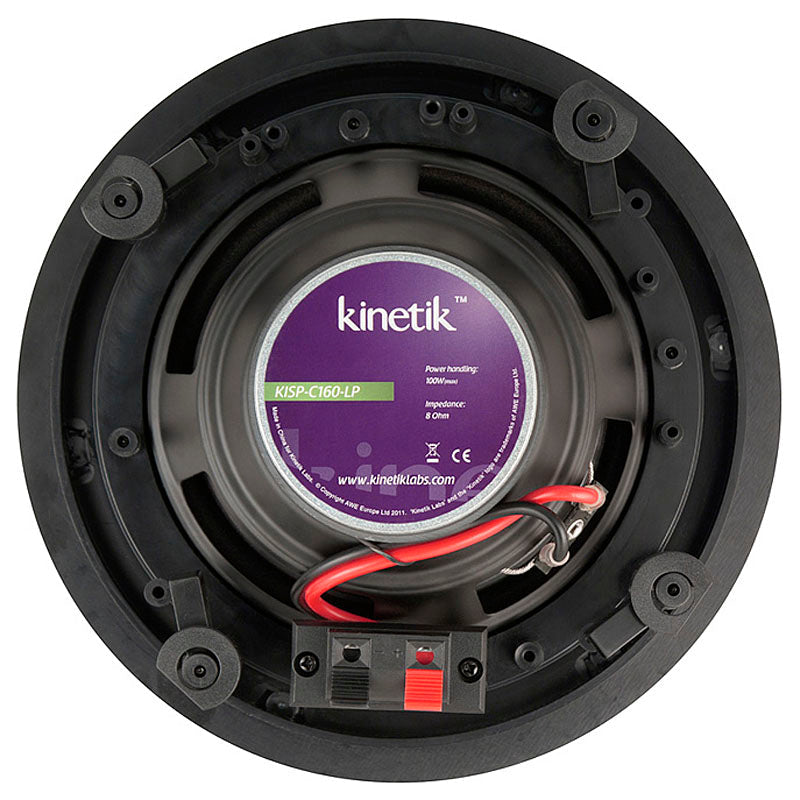

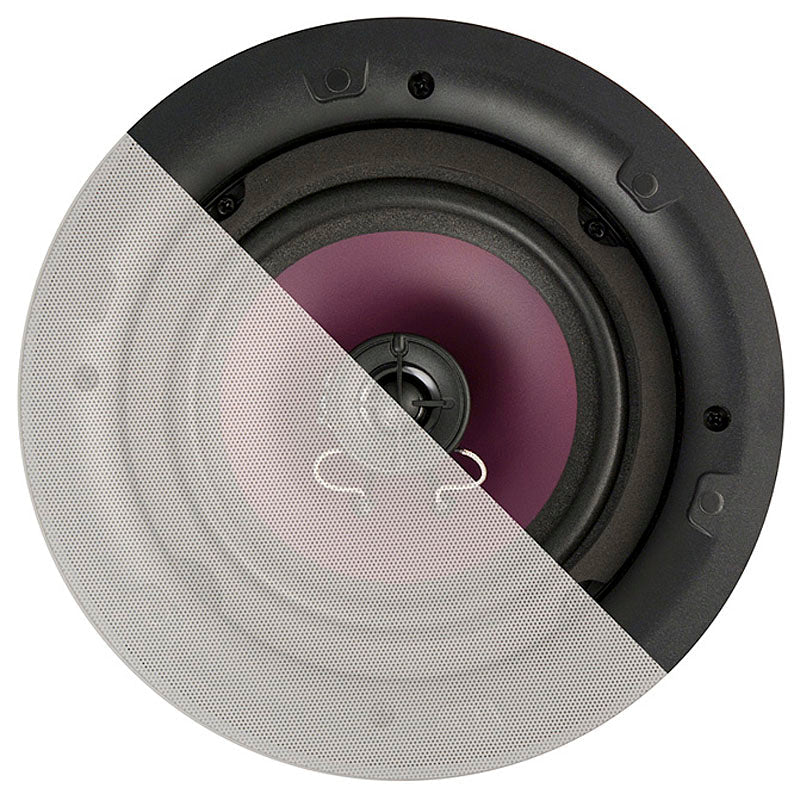

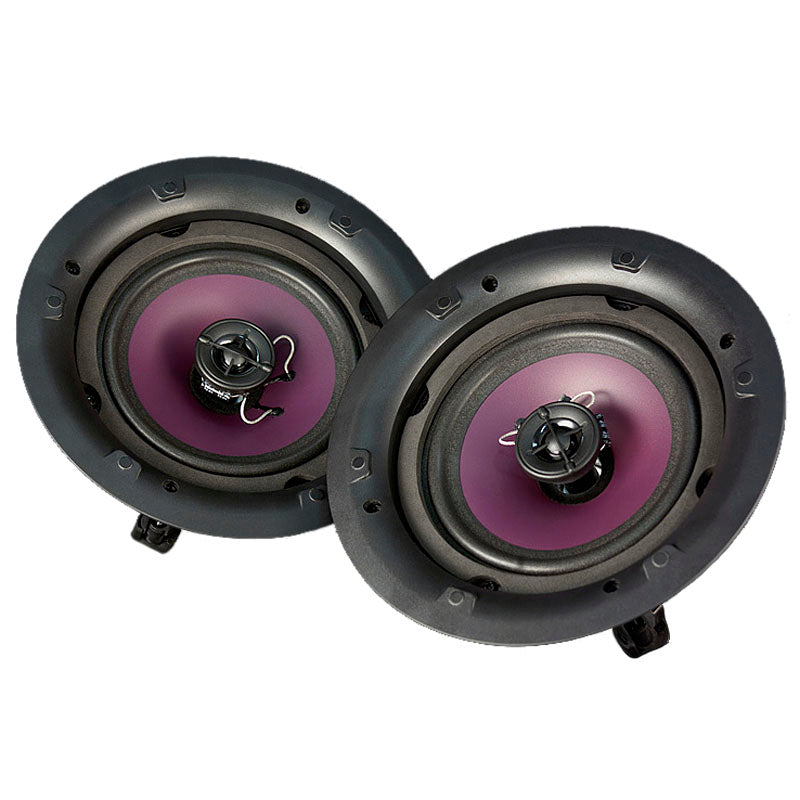

Kinetik C160-LP In-Ceiling Speakers
The Kinetik C160-LP in-ceiling speakers provide outstanding performance for their price. They are ideally suited to multiroom audio installations which require good quality budget speakers.
The low profile construction with full surface speaker grille provides the professional finish demanded in current architectural design. They are designed for installation in ceilings, or other suitable surfaces such as plasterboard walls. They are a two way array design with 160mm Polypropylene bass/mid driver and pivotable 13mm mylar dome tweeter.
Specifications
Bass/mid driver
|
160mm (6") polypropylene |
| Tweeter |
13mm mylar dome (pivoting) |
| Frequency range |
55 - 22000 Hz |
| Impedance |
8Ω |
| Power handling |
125W |
| Sensitivity |
88dB |
| Cutout diameter |
204mm |
| Mounting depth |
86mm |
