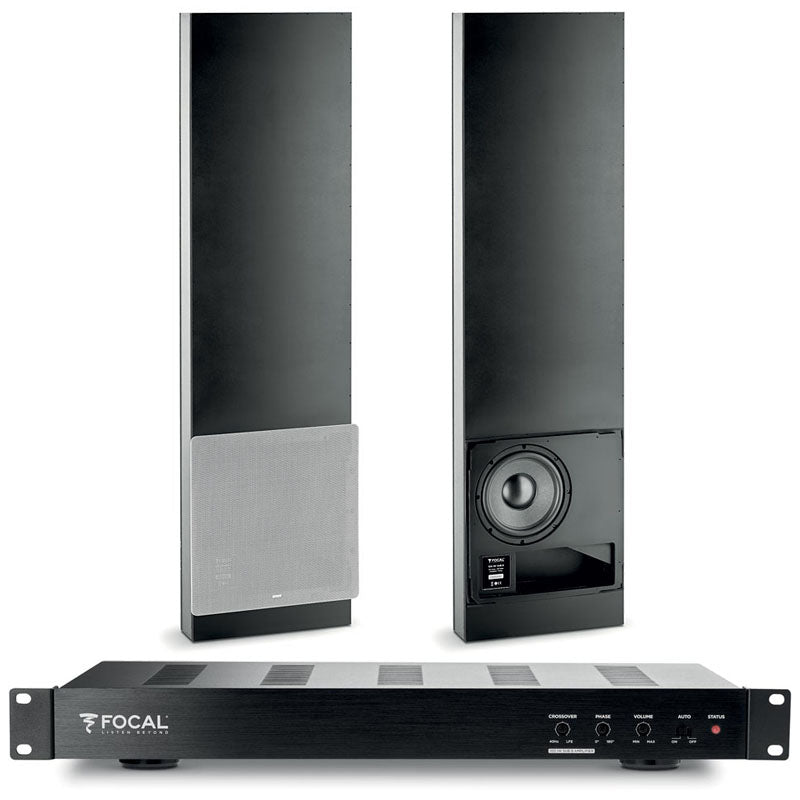

This subwoofer package consists of a Focal 100 IWSUB8 Subwoofer Amplifier and 2 x Focal 100 IWSUB8 In-Wall Subwoofers.

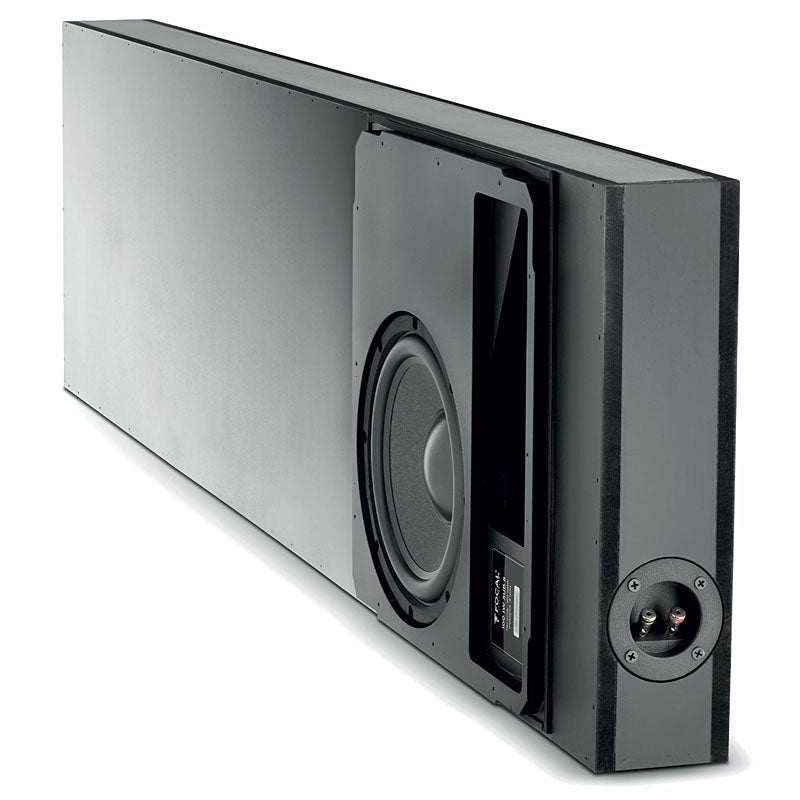

Focal 100 IWSUB8 In-Wall Subwoofer

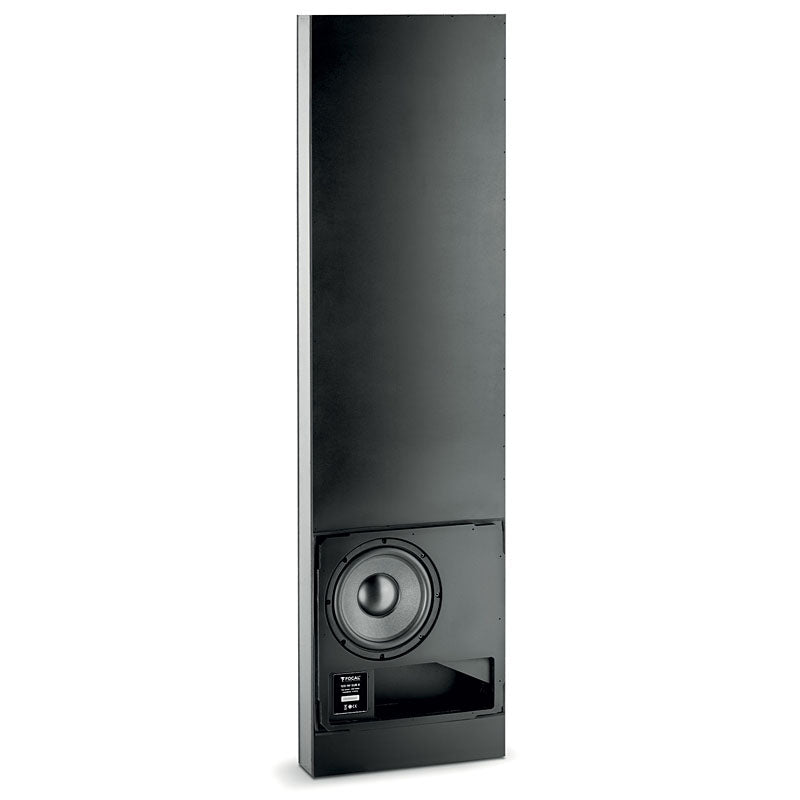

The Focal 100 IWSUB8 In Wall Subwoofer is part of the 100 range and brings incredible bass and acoustic innovations to your audio systems. With an 8 inch polyglass speaker driver, this subwoofer offers an innovative solution for home cinema installations.
Powerful Bass
The 100 IWSUBB is a powerful bass-reflex subwoofer designed for a sensational bass performance. The polyglass 8 inch woofer and front vent with a streamlined inner frame is designed for an exceptionally low noise operation.
Easy Installation

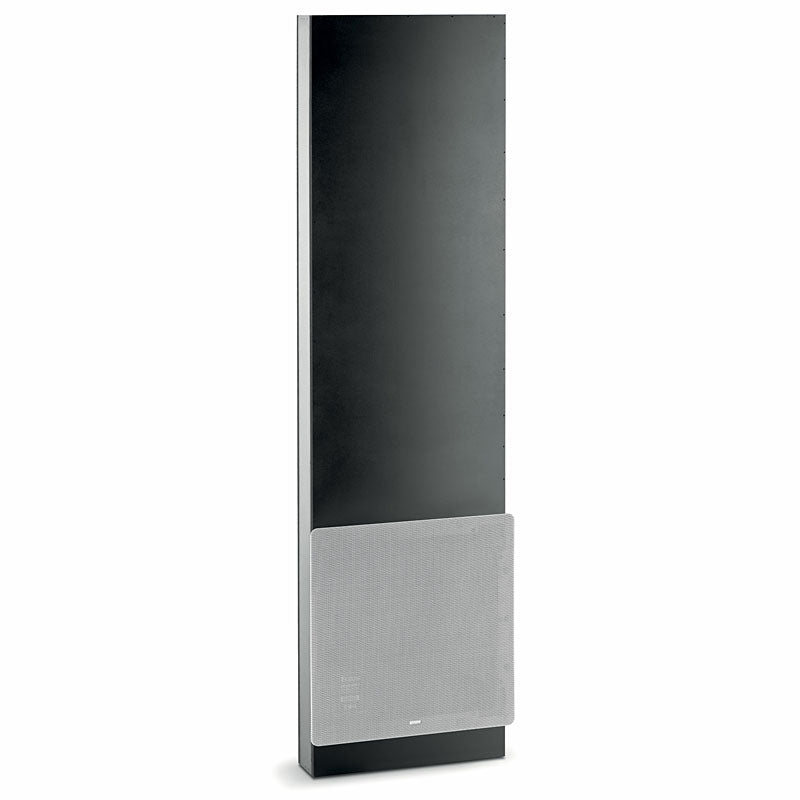

The 100 IWSUBB features a discreet ready to paint grille that can easily mounted using a magnetic fixing. It can be installed in wall, with a shallow in-wall depth of 3 3/8 inch. This offers a highly discreet solution of boosting the bass in your music systems.
Key Features
- Bass cut-off frequency: 30Hz to -6db
- Low depth (3⅜" / 86mm) fitting 16" OC studs in-wall installation
- Nominal impedance of 8Ω, able to be connected by pairs with 100 IWSUB8 Amplifier

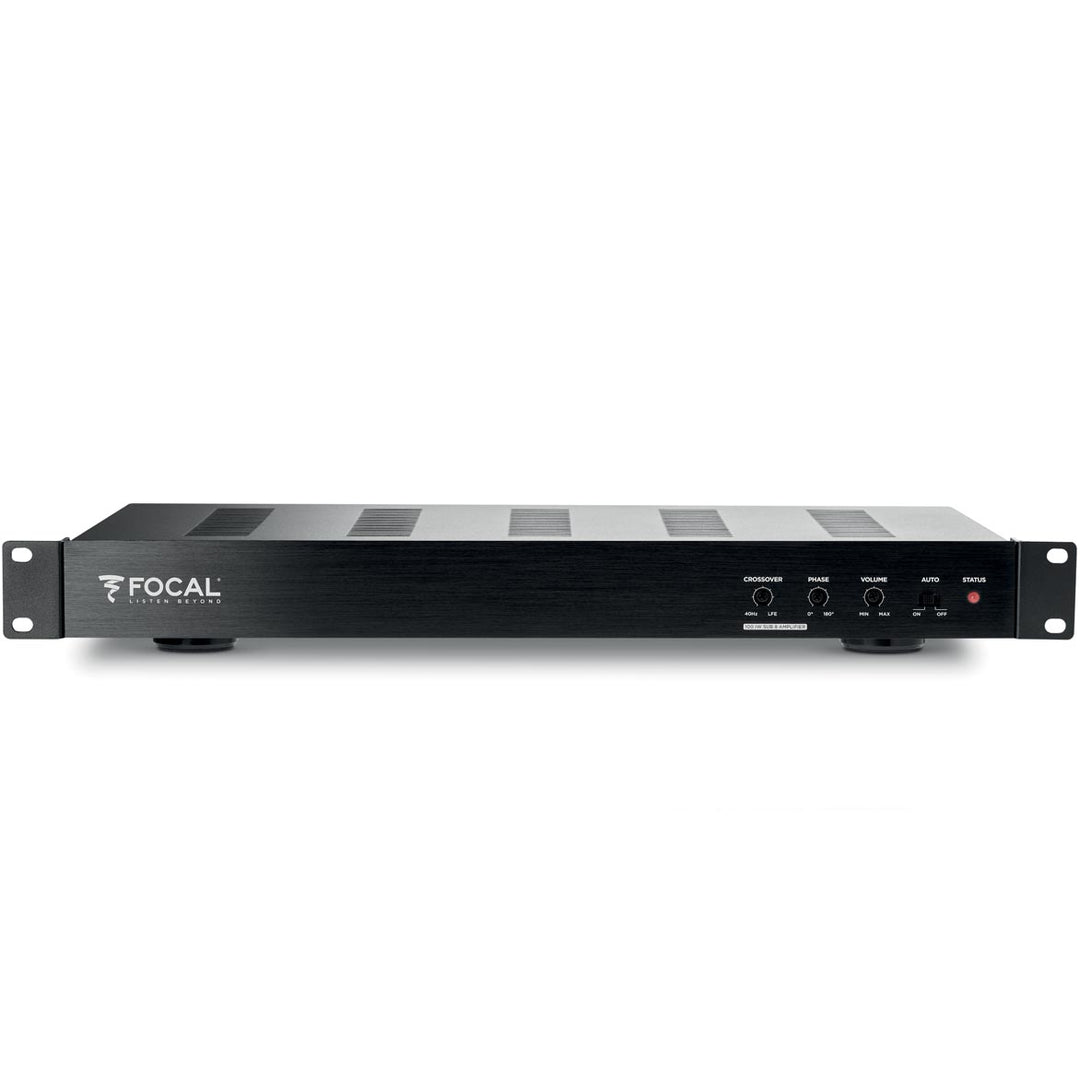

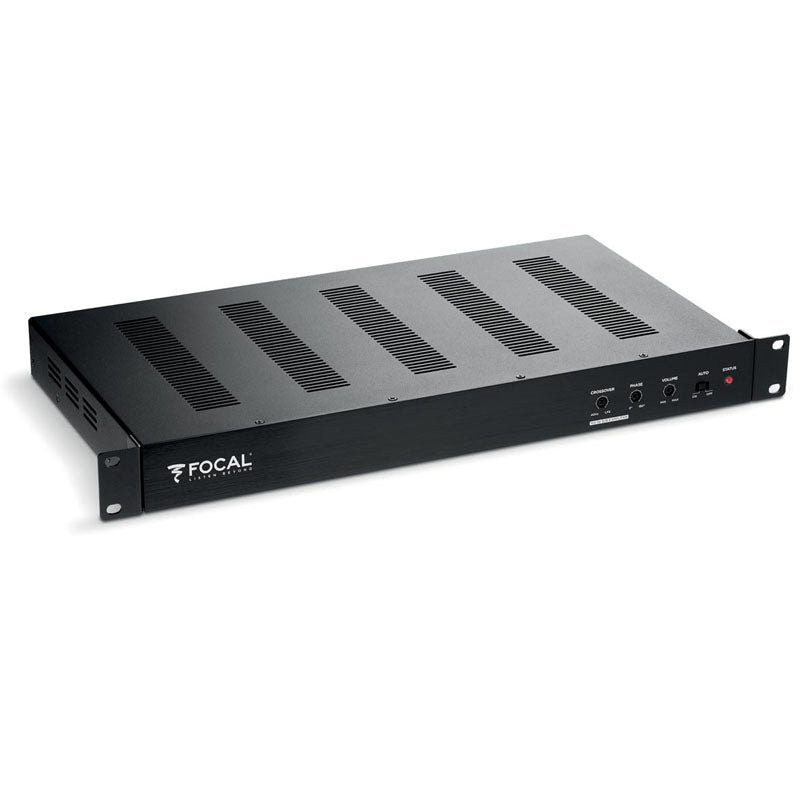

Focal 100 IWSUB8 Subwoofer Amplifier
The Focal 100 IWSUB8 Amplifier is a high power subwoofer amp suitable for use with the passive 100 IWSUB8 Subwoofer. It has a rack mountable design and delivers a maximum of 200 watts, and continuous power of 150 watts into 4 ohms to your subwoofer.
This subwoofer amplifier offers high levels of electronic protection. It is capable of powering up to two 100 IWSUB8 subwoofers connected in parallel. It features a streamlined design that can be rack mounted for a neat and tidy integration into your hifi/AV system.
Key Features
- Peak power: 200W (continuous power : 150W under 4Ω)
- Amplifier able to drive 2 x 100 IWSUB8 subwoofers connected in parallel
- High-level electronic protection (dynamic power control, thermal protection, short circuit, fuse, and over-current protection)
- Flush potentiometers
- Dimensions (HxWxD): 1¾ x 16⅞ x 10⅛" [44.5 x 429 x 257mm]
- Height with stands: 2⅟16"
- Width with brackets: 19"
Specifications
| Power: |
Max 200W, 150W continuous (4Ω) |
| Minimum load: |
4Ω |
| Voltage range: |
100-120V~60Hz / 220-230V~50Hz |
| Power consumption: |
150W |
| Stand-by power consumption: |
0.5W |
| Bandwith: |
20-250Hz |
| Subsonic filter: |
18dB/oct. |

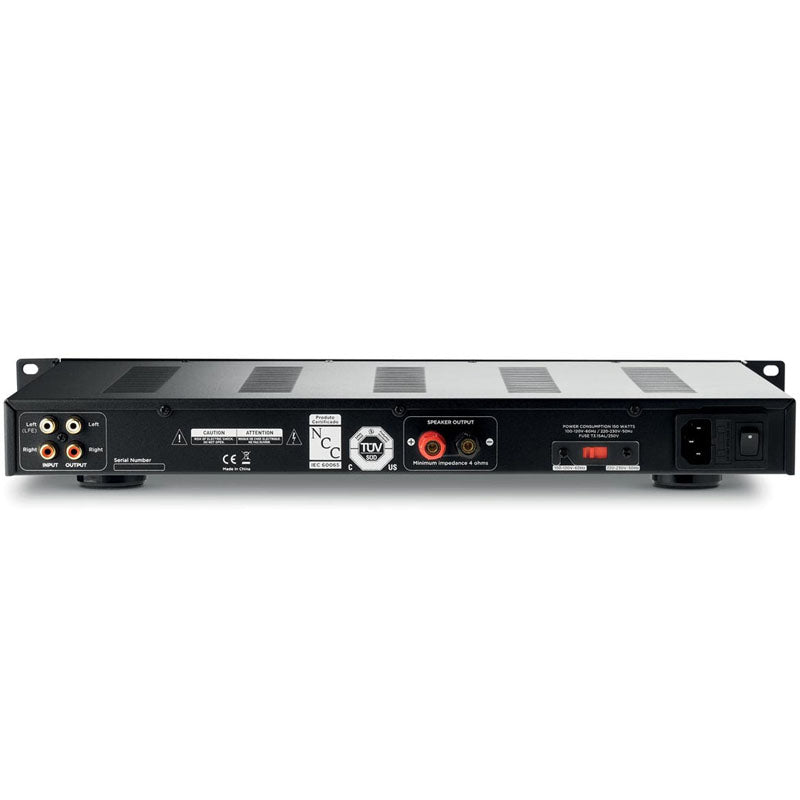

| Inputs: |
LFE, Line in L/R |
| Outputs: |
Line out L/R and subwoofer power output on speaker terminal |
| Cord: |
Detachable IEC power cord |
| Protection: |
Dynamic power control, thermal protection, short circuit, fuse, and over-current protection |
| Dimensions: |
(HxWxD) 1¾ (2⅟16 with stands) x 16⅞ (19" with brackets) x 10⅛" [44.5 x 429 x 257mm] |
| Net weight: |
6.8lbs (3.1kg) |
