The Audioflow switch is carefully designed to be a convenient and safe way of switching between multiple speakers in a typical domestic multi-room audio system. It is perfect for connecting ceiling speakers, on-wall and in-wall speakers, bookshelf speakers and outdoor speakers to a single amplifier output.
You would be able to connect speakers in different areas. For example, a Bedroom / Dressing / En-suite, or an Open Plan Kitchen / Dining / Living Room / Garden without the expense of multiple amplifiers.

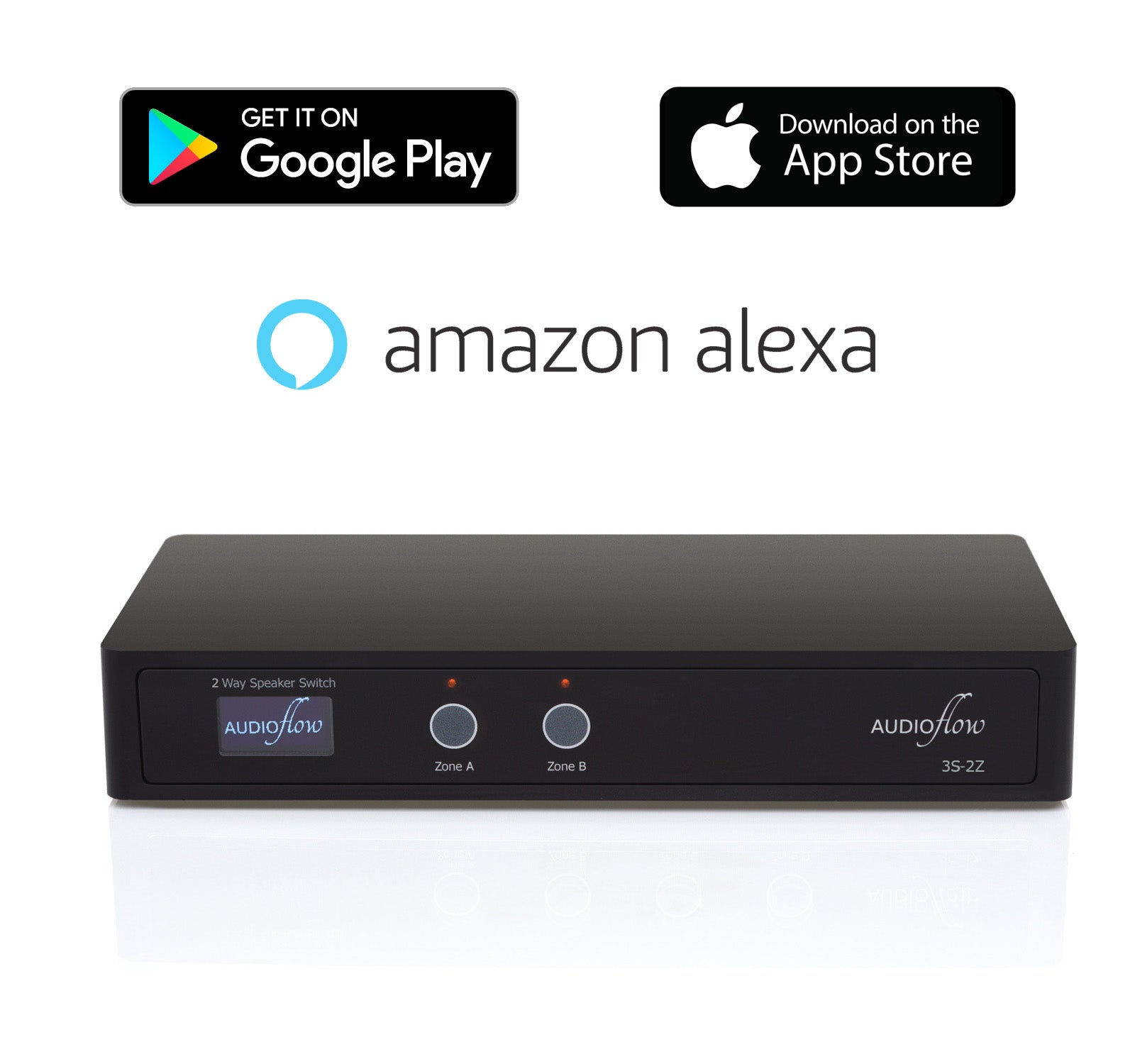

The speaker switch provides lots of flexibility by allowing you to enable and disable any combination of the speakers attached to it with the buttons on the front of the unit, over Wi-Fi with an app for iOS / Android, the Amazon Alexa Voice Assistant or Contact Closure connections.
Features
- Connect two pairs of speakers to your stereo amplifier
- Control the switch via Wi-Fi with the Audioflow app for iOS / Android
- Control the switch via Amazon Alexa Voice Assistant
- Control the switch with Contact Closure
- Rated for amplifier outputs up to 300W at 8Ω
- Designed and manufactured in the UK
Description: 2 Way Smart Speaker Switch
Model Number: 3S-2Z
Product Dimensions, Weight: H38 x W216 x D100 mm, 286g
Boxed Dimensions, Weight: H90 x W355 x D127 mm, 687g
Includes: Power Supply, Connection Plugs, Cable Ties, Quick Start Guide
Power Input: 5V DC 1A, 2.1 x 5.5mm Barrel Plug, Centre Positive
Power Supply: 100-240V 50/60Hz, 1.8m Lead, UK/EU/USA/AUS Plugs
Switching Relays: Max 8A @ 250V AC
Amplifier Power: Max 300W @ 8Ω
Cable Connection: Max 2.5mm2 or 14AWG
Speaker System Design: Series Switching
All Zones Off: Amplifier Protection 200Ω Dummy Load
Wi-Fi Support: 2.4GHz 802.11b/g/n, WPA/WPA2 PSK
Supported OS (Provisioning): Android 6.0+ (Google Play Store) / Apple iOS 11.0+ (App Store)
