| Power Input |
100-240V AC |
| Network |
Wi-Fi 6E, 802.11 b/g/n/ax 2.4 GHz, 5 GHz, and 6 GHz triple bands |
| Bluetooth |
Bluetooth 5.3 with BLE and BT supports both A2DP receiver and transmitter, AVRCP, HID, works with the WiiM Voice Remote |

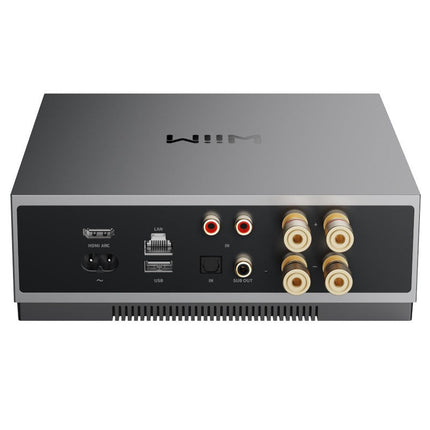

| Audio Input |
Analog (RCA), Digital Optical Port, HDMI ARC, up to 24-bit/192 kHz |
| Audio Output |
Banana (x2), Subwoofer out |
| USB |
USB Host: Connects to USB disk for local music playback
USB Audio: Supports two-channel USB audio output |
| Amplifier |
TI TPA 3255 Class-D digital amplifier |
| Power |
60 W/channel (8 ohms), 120 W/channel (4 ohms) |
| DAC |
Highest Performance 32-bit ESS Sabre 9018K2M |
| SNR |
108 dB |
| THD+N |
- 95 dB, 5W @ 8 Ohms |
| Audio Codec |
MP3, AAC, ALAC, APE, FLAC, WAV, WMA, OGG |
| Equalizer |
24 preset EQ settings for different music genres
10-band graphic EQ that can adjust to optimize sound performance for every audio source (Line in, BT or Network)
10-band parametric R/L EQ that can adjust to optimize the sound performance based on your room characteristics, allowing more fine granular adjustment
Bass management
Built-In Room Correction |
| Protocol |
Chromecast Audio, DLNA, Spotify Connect, TIDAL Connect, Amazon Music Casting, Qplay 2.0, Roon |
| Streaming Services in WiiM Home App |
Spotify, Amazon Music, Deezer, Tunein, Tidal, Qobuz, SoundCloud, Pandora, iHeartRadio, vTuner, Napster, Sound machine, Sound Track Your Brand, and more to come |
| Supported Control Platforms |
Control 4, RTI, URC, Josh.ai |
| Weight |
68.26 oz (1.935 kg) |
| Dimension |
(L) 7.48 x (W) 7.48 x (H) 2.52 (Inch) / (L) 190 x (W) 190 x (H) 64 (mm) |
| What’s in the box |
WiiM CI MOD A80 (1), Optical cable (1), Stereo RCA cable (1), HDMI cable (1), Power cable (1), Screws (7), Mounting brackets (2) |
