| Power Input |
USB Type-C, requires 5V, 1.5A or higher
Bundled adapter: 5V, 2A |
| Digital Audio Output |
Bit-perfect output, up to 192 kHz, 24-bit with digital optical or coaxial output |
| Network |
802.11 b/g/n/ac 2.4 GHz and 5 GHz dual bands Wi-Fi 10/100M Ethernet |
| Bluetooth |
Bluetooth 5.1 |

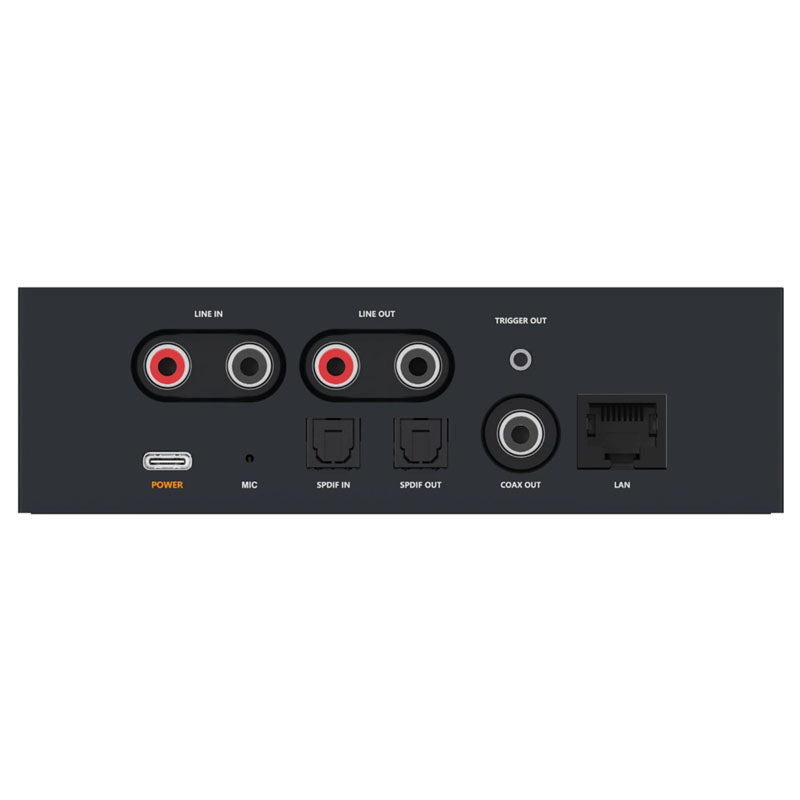

| Audio Input |
1 x Analog RCA Line input, 1 x SPDIF in Optical, up to 192kHz/24-bit |
| Audio Output |
1 x Analog RCA Line output, 1 x Digital optical (SPDIF) output, 1 x Digital Coaxial output, up to 192kHz/32-bit |
| DAC |
AKM AK4493SEQ |
| Trigger Out |
3.5mm Trigger out |
| SNR |
120 dB |
| THD+N |
0.00032% (-110 dB) |
| Audio Codec |
MP3, AAC, ALAC, APE, FLAC, WAV, WMA, OGG |
| Equalizer |
24 preset EQ settings for different music genres
10-band graphic EQ that can adjust to optimize sound performance for every audio source (Line in, BT or Network)
10-band parametric R/L EQ that can adjust to optimize the sound performance based on your room characteristics, allowing more fine granular adjustment
Bass management
Built-in Room Correction |
| Protocol |
Chromecast Audio, DLNA, Spotify Connect, TIDAL Connect, Amazon Music Casting, Qplay 2.0, Roon |
| Streaming Services in WiiM Home App |
Spotify, Amazon Music, Deezer, TuneIn, Tidal, Qobuz, SoundCloud, Pandora, iHeartRadio, vTuner, Napster, SoundMachine, BBC Radio, Calm Radio, Radio Paradise, Sound Track Your Brand, more to come |
| Supported Control Platforms |
Control 4, RTI, URC, Josh.ai |

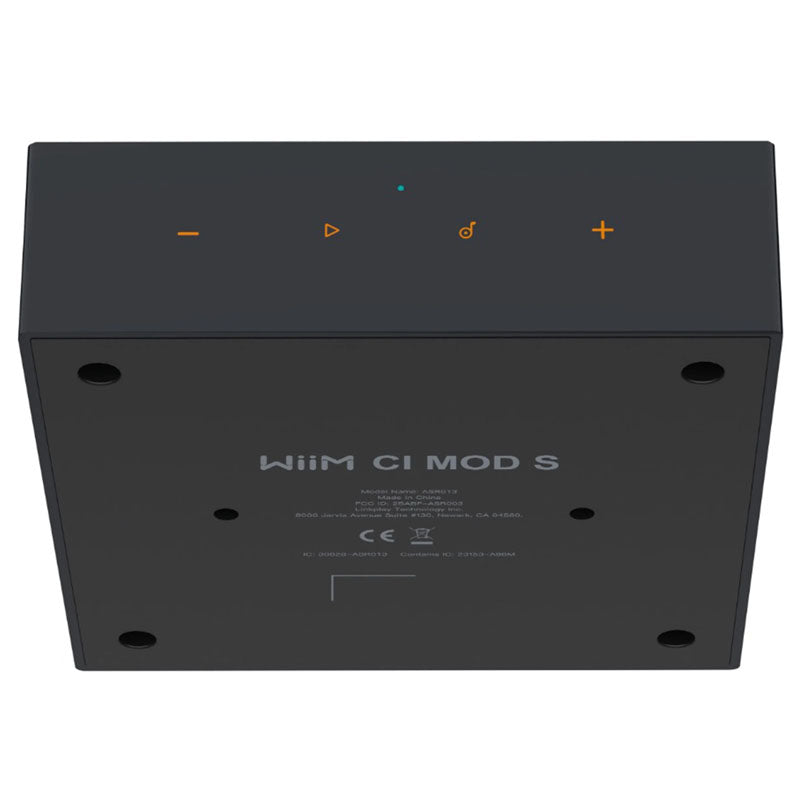

| Buttons |
Touch buttons: Play/Pause/Setup, Volume +, Volume -, Preset |
| Weight |
11.6 oz (330g) |
| Dimensions |
(L) 5.5 x (W) 5.5 x (H) 1.6 (Inch) / (L) 140 x (W) 140 x (H) 42 (mm) |
| What’s in the box |
WiiM CI MOD S (1), Optical cable (1), Stereo RCA cable (1), Type C cable (1), Adapter (1), Screws (3) |
